Hardness Testing Machines
Hardness Testing Machines
Model : MRS
Meta-Test make hardness testers model MRS, MRS-150, MRB, MRB-250 and MSM are manually operated. These models are designed and developed after years of experience in this field. All the models are manufactured under strict quality control at all manufacturing stages.

These models are suitable for testing hardness of metals and alloys of all kinds, hard or soft, whether flat or round etc. or of irregular shape. These Testers are simple in design and easy to operate, still yet quite sensitive and accurate.
Various Models from the wide range are available for Institutes, Quality Control Laboratories, Tool-Rooms, Heat Treatment Dept, R & D Laboratories, etc.

These models strictly Conform to IS : 1586-2000, BS : 891 Part 1 & 2 for Rockwell & Rockwell Superficial Test. IS : 2281 - 1983, ASTM - E-1 0 for Brinell Test.

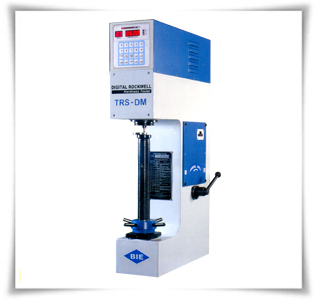

  Rockwell Hardness Tester
Rockwell Hardness Tester
  Salient Features :-
*
 Motorised System For Application And Removal Of Major Load.
*
 Minor Load Setting By LED Bar Graph.
*
 Keyboard Entry For Scale Selection.
*
 Hi-Low-OK Indication For Hardness Value.
*
 Easy To Read, Large Size Extra Bright 7 Segment Display.
*
 Centronics Parallel Port For Connecting Dot Matrix Printer.
*
 Manual Operation Available Case Of Motor Failure.
*
 Sufficient Error Codes For Smooth Functioning Of Machines.
*
 Three Modes Of Operation Of Machine
Viz. Motorised Automatic Mode, Motorised Mode, Manual Mode.
*
 Indentor Is Guided In Linear Bearings Facilitates To Test Small Diameter Jobs.
*
 Serial Interface (Optional)
*
 Extra Scale Requirement Other Than Std. Scales (Optional)
*
 Conversion Of Scales / Correction Factor (Optional)

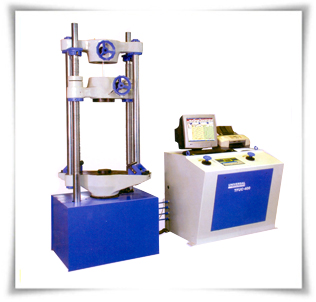

  Universal Testing Machines
Universal Testing Machines
Features :-
Universal Testing Machines have a wide range of applications. and number of materials, metals in different form and shapes can be tested for variety of tests like Tension, Compression, Transverse, Bend, Shear, Brinell Hardness etc. Special attachments are also available for testing of Flat Belts, Chain Links, Wire Ropes etc.

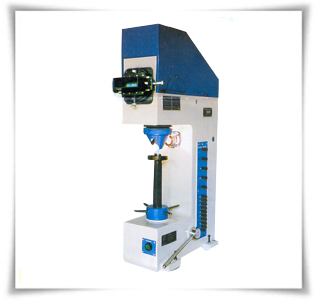

  Vickers cum Brinell Hardness Testing Machines
Vickers cum Brinell Hardness Testing Machines
Features :-
'BIE' make Vickers Hardness Testers Model BV-250, BV-250-S, BV-120, BV-120-S, BV-50, BV-50-S are suitable for Vickers and Brinell Hardness of steel and other metals. These machines are designed and manufactured for very high accuracy, reliability and ease of operation. The selection of load is effected with the push button control system. The measurements of diagonal/diameter of indentation is done with the help of built-in optical system with graduated readout with Micrometer. After taking indentation on the work piece, the objective lens is automatically swivelled into position and image of indentation appears on the focusing screen fitted in front of the machine. A push button is provided for starting the loading cycle and unloading is accomplished through hand lever. This machine conforms to IS 1754-1986 for Vickers and IS 2281-1983, BS-240 for Brinell Test.

Vickers Hardness Testing Machines
BV-50        : Only for vicker test load range 5 kgf to 50 kgf
BV-50-S    : Only for vicker test load range 1 kgf to 50 kgf
BV-120      : Only for vicker test load range 5 kgf to 120 kgf
BV-120-S  : Only for vicker test load range 1 kgf to 120 kgf

Vickers cum Brinell Hardness Testing Machines
BV-250            : For Vickers and Brinell Test load range 5 kgf to 250 kgf
BV-250-S        : For Vickers and Brinell Test load range 1 kgf to 250 kgf
